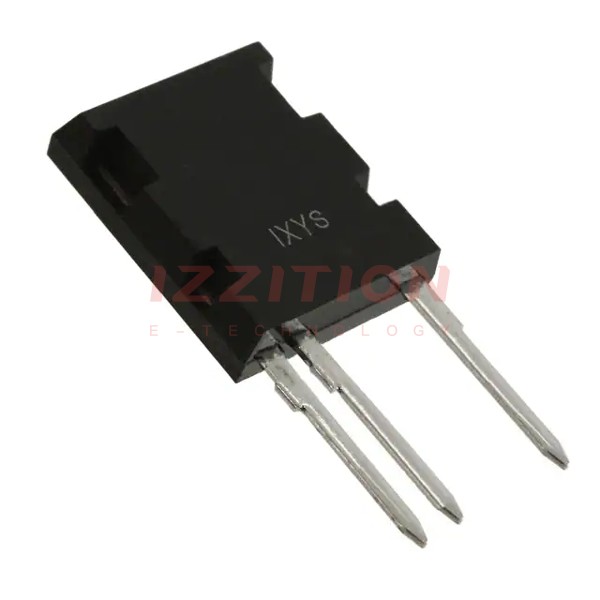

| Part Number | IXGL75N250 | IXGK75N250 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| IGBT Type | - | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 2500 V | 2500 V |
| Current - Collector (Ic) (Max) | 110 A | 170 A |
| Current - Collector Pulsed (Icm) | 580 A | 530 A |
| Vce(on) (Max) @ Vge, Ic | 2.9V @ 15V, 75A | 3.6V @ 15V, 150A |
| Power - Max | 430 W | 780 W |
| Switching Energy | - | - |
| Input Type | Standard | Standard |
| Gate Charge | 410 nC | 410 nC |
| Td (on/off) @ 25°C | - | - |
| Test Condition | - | - |
| Reverse Recovery Time (trr) | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | ISOPLUSi5-Pak™ | TO-264-3, TO-264AA |
| Supplier Device Package | ISOPLUSi5-Pak™ | TO-264 (IXGK) |
