IXYS-IXGF36N300 - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	3000 V
Current - Collector (Ic) (Max):	36 A
Current - Collector Pulsed (Icm):	400 A
Vce(on) (Max) @ Vge, Ic:	5.2V @ 15V, 100A
Power - Max:	160 W
Switching Energy:	-
Input Type:	Standard
Gate Charge:	136 nC
Td (on/off) @ 25°C:	-
Test Condition:	-
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	i4-Pac™-5 (3 Leads)
Supplier Device Package:	ISOPLUS i4-PAC™

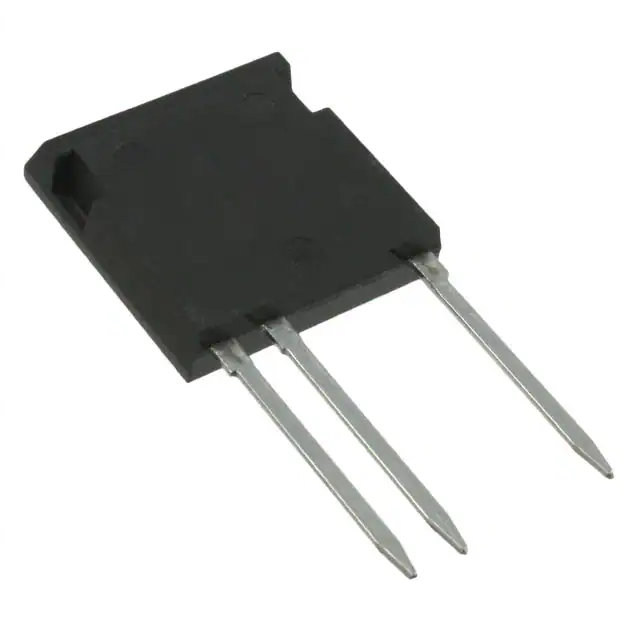

IXYS IXGF36N300
