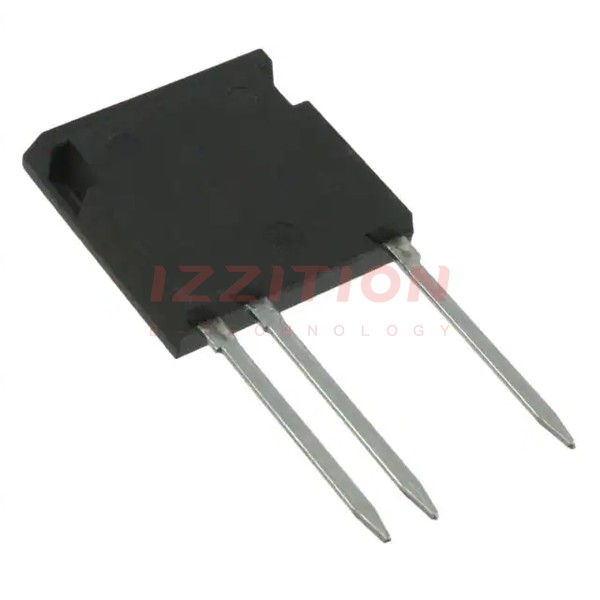

| Part Number | IXGF25N300 | IXGF20N300 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| IGBT Type | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 3000 V | 3000 V |
| Current - Collector (Ic) (Max) | 27 A | 22 A |
| Current - Collector Pulsed (Icm) | 140 A | 103 A |
| Vce(on) (Max) @ Vge, Ic | 5.5V @ 15V, 75A | 3.2V @ 15V, 20A |
| Power - Max | 114 W | 100 W |
| Switching Energy | - | - |
| Input Type | Standard | Standard |
| Gate Charge | 75 nC | 31 nC |
| Td (on/off) @ 25°C | - | - |
| Test Condition | - | - |
| Reverse Recovery Time (trr) | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | i4-Pac™-5 (3 Leads) | i4-Pac™-5 (3 Leads) |
| Supplier Device Package | ISOPLUS i4-PAC™ | ISOPLUS i4-PAC™ |
