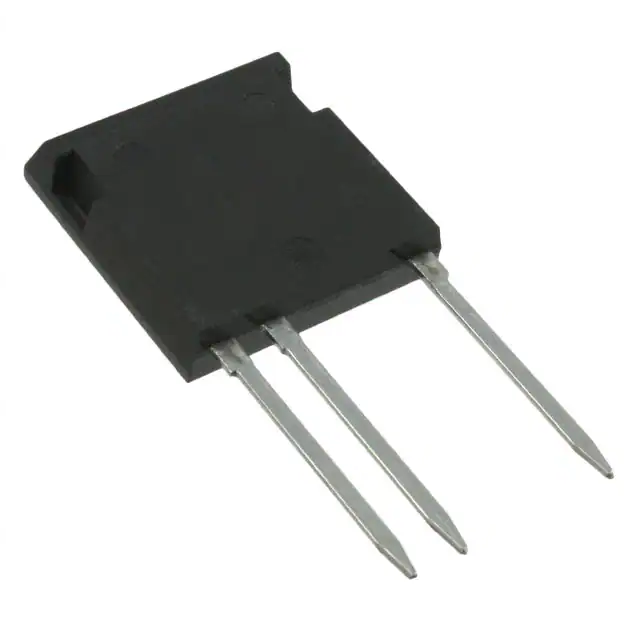

| Part Number | IXGF20N250 | IXGF25N250 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| IGBT Type | - | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 2500 V | 2500 V |
| Current - Collector (Ic) (Max) | 23 A | 30 A |
| Current - Collector Pulsed (Icm) | 105 A | 200 A |
| Vce(on) (Max) @ Vge, Ic | 3.1V @ 15V, 20A | 5.2V @ 15V, 75A |
| Power - Max | 100 W | 114 W |
| Switching Energy | - | - |
| Input Type | Standard | Standard |
| Gate Charge | 53 nC | 75 nC |
| Td (on/off) @ 25°C | - | - |
| Test Condition | - | - |
| Reverse Recovery Time (trr) | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | i4-Pac™-5 (3 Leads) | i4-Pac™-5 (3 Leads) |
| Supplier Device Package | ISOPLUS i4-PAC™ | ISOPLUS i4-PAC™ |
