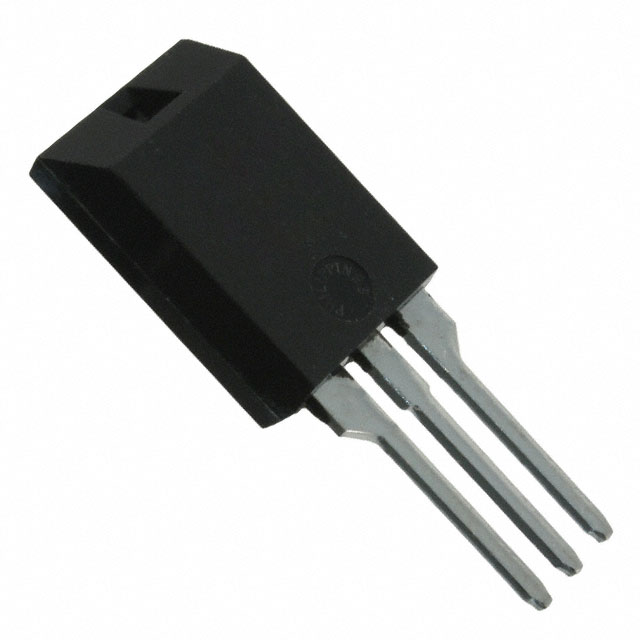

| Part Number | IXGC16N60B2D1 | IXGC16N60C2D1 | IXGH16N60B2D1 | IXGA16N60B2D1 |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| IGBT Type | PT | PT | PT | PT |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 28 A | 20 A | 40 A | 40 A |
| Current - Collector Pulsed (Icm) | 100 A | 100 A | 100 A | 100 A |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 12A | 3V @ 15V, 12A | 1.95V @ 15V, 12A | 1.95V @ 15V, 12A |
| Power - Max | 63 W | 63 W | 150 W | 150 W |
| Switching Energy | 150mJ (off) | 60µJ (off) | 160µJ (on), 120µJ (off) | 160µJ (on), 120µJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 32 nC | 32 nC | 24 nC | 24 nC |
| Td (on/off) @ 25°C | 25ns/70ns | 25ns/60ns | 18ns/73ns | 18ns/73ns |
| Test Condition | 400V, 12A, 22Ohm, 15V | 400V, 12A, 22Ohm, 15V | 400V, 12A, 22Ohm, 15V | 400V, 12A, 22Ohm, 15V |
| Reverse Recovery Time (trr) | 110 ns | 30 ns | 30 ns | 30 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount |
| Package / Case | ISOPLUS220™ | ISOPLUS220™ | TO-247-3 | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | ISOPLUS220™ | ISOPLUS220™ | TO-247AD | TO-263AA |
