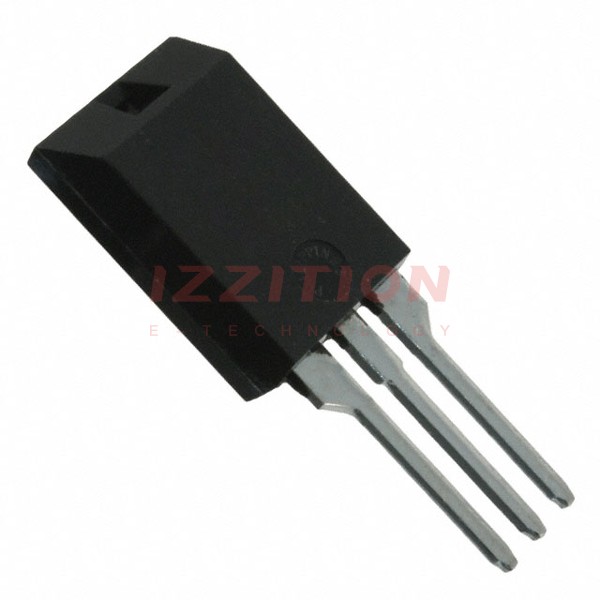

| Part Number | IXGC12N60CD1 | IXGH12N60CD1 | IXGA12N60CD1 |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Obsolete | Active |
| IGBT Type | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 15 A | 24 A | 24 A |
| Current - Collector Pulsed (Icm) | 48 A | 48 A | 48 A |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 12A | 2.7V @ 15V, 12A | 2.7V @ 15V, 12A |
| Power - Max | 85 W | 100 W | 100 W |
| Switching Energy | 90µJ (off) | 90µJ (off) | 90µJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 32 nC | 32 nC | 32 nC |
| Td (on/off) @ 25°C | 20ns/60ns | 20ns/60ns | 20ns/60ns |
| Test Condition | 480V, 12A, 18Ohm, 15V | 480V, 12A, 18Ohm, 15V | 480V, 12A, 18Ohm, 15V |
| Reverse Recovery Time (trr) | 35 ns | 35 ns | 35 ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Surface Mount |
| Package / Case | ISOPLUS220™ | TO-247-3 | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | ISOPLUS220™ | TO-247AD | TO-263AA |
