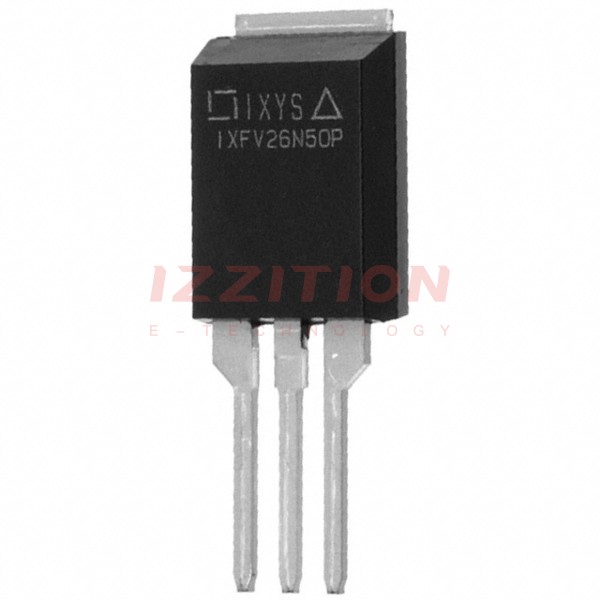

| Part Number | IXFV36N50P | IXFT36N50P | IXFV26N50P | IXFV30N50P |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V | 500 V | 500 V | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 36A (Tc) | 36A (Tc) | 26A (Tc) | 30A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 170mOhm @ 500mA, 10V | 170mOhm @ 500mA, 10V | 230mOhm @ 13A, 10V | 200mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 4mA | 5V @ 4mA | 5.5V @ 4mA | 5V @ 4mA |
| Gate Charge (Qg) (Max) @ Vgs | 93 nC @ 10 V | 93 nC @ 10 V | 60 nC @ 10 V | 70 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 5500 pF @ 25 V | 5500 pF @ 25 V | 3600 pF @ 25 V | 4150 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 540W (Tc) | 540W (Tc) | 400W (Tc) | 460W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |
| Supplier Device Package | PLUS220 | TO-268AA | PLUS220 | PLUS220 |
| Package / Case | TO-220-3, Short Tab | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-220-3, Short Tab | TO-220-3, Short Tab |
