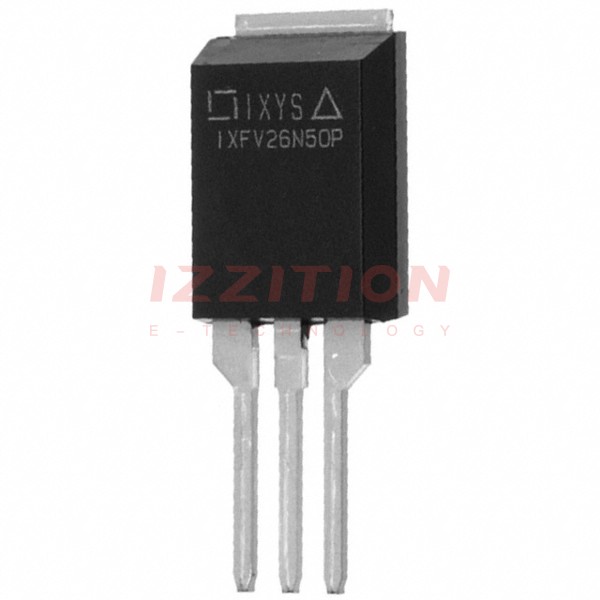

| Part Number | IXFV12N80P | IXFV14N80P | IXFV16N80P | IXFV12N90P |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Obsolete | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V | 800 V | 800 V | 900 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Tc) | 14A (Tc) | 16A (Tc) | 12A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 850mOhm @ 500mA, 10V | 720mOhm @ 500mA, 10V | 600mOhm @ 500mA, 10V | 900mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 5.5V @ 2.5mA | 5.5V @ 4mA | 5V @ 4mA | 6.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 51 nC @ 10 V | 61 nC @ 10 V | 71 nC @ 10 V | 56 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2800 pF @ 25 V | 3900 pF @ 25 V | 4600 pF @ 25 V | 3080 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 360W (Tc) | 400W (Tc) | 460W (Tc) | 380W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | PLUS220 | PLUS220 | PLUS220 | PLUS220 |
| Package / Case | TO-220-3, Short Tab | TO-220-3, Short Tab | TO-220-3, Short Tab | TO-220-3, Short Tab |
