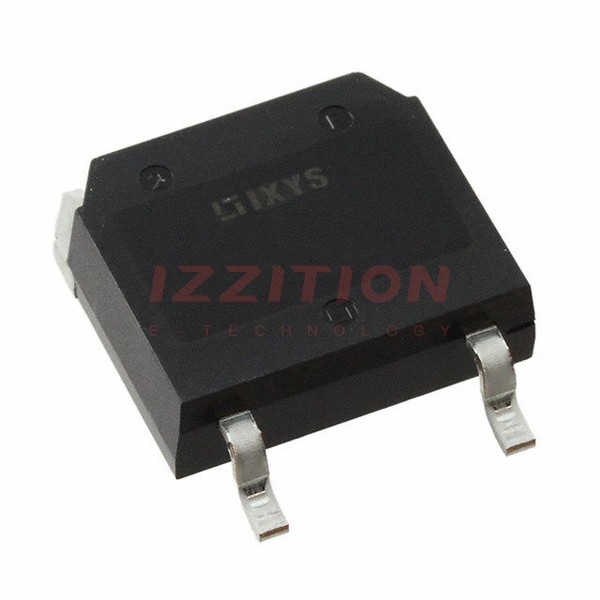

| Part Number | IXFT60N65X2HV | IXFT80N65X2HV |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) | 80A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 52mOhm @ 30A, 10V | - |
| Vgs(th) (Max) @ Id | 5V @ 4mA | 5V @ 4mA |
| Gate Charge (Qg) (Max) @ Vgs | 108 nC @ 10 V | 140 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 6300 pF @ 25 V | 8300 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 780W (Tc) | 890W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | TO-268HV (IXFT) | TO-268HV (IXFT) |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
