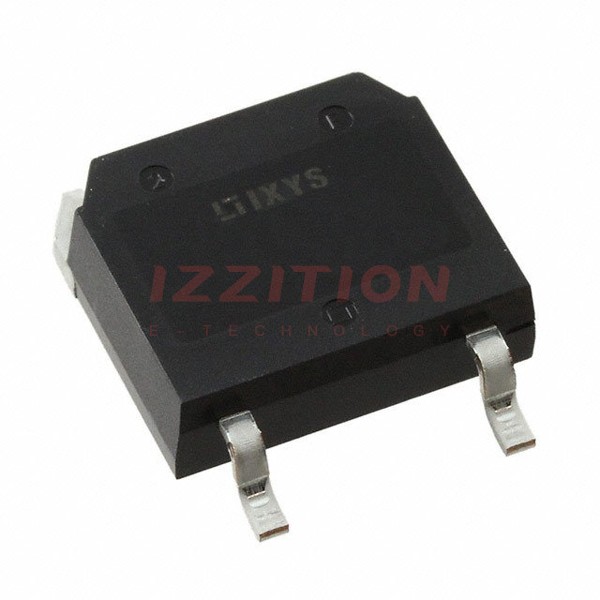

| Part Number | IXFT100N30X3HV | IXFT150N30X3HV | IXFT120N30X3HV |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 300 V | 300 V | 300 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) | 150A (Tc) | 120A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 13.5mOhm @ 50A, 10V | 8.3mOhm @ 75A, 10V | 11mOhm @ 60A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 4mA | 4.5V @ 4mA | 4.5V @ 4mA |
| Gate Charge (Qg) (Max) @ Vgs | 122 nC @ 10 V | 254 nC @ 10 V | 170 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 7660 pF @ 25 V | 13100 pF @ 25 V | 1376 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 480W (Tc) | 890W (Tc) | 735W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | TO-268HV (IXFT) | TO-268HV (IXFT) | TO-268HV (IXFT) |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
