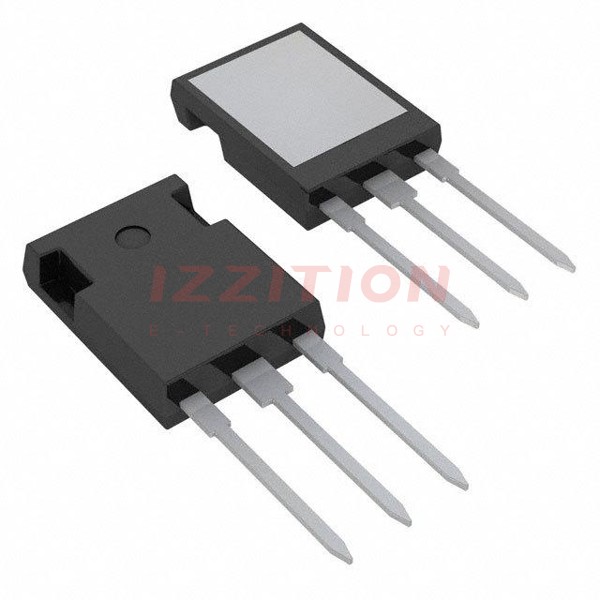

| Part Number | IXFR26N120P | IXFR16N120P | IXFR20N120P | IXFR26N100P |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1200 V | 1200 V | 1200 V | 1000 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Tc) | 9A (Tc) | 13A (Tc) | 15A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 500mOhm @ 13A, 10V | 1.04Ohm @ 8A, 10V | 630mOhm @ 10A, 10V | 430mOhm @ 13A, 10V |
| Vgs(th) (Max) @ Id | 6.5V @ 1mA | 6.5V @ 1mA | 6.5V @ 1mA | 6.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 225 nC @ 10 V | 120 nC @ 10 V | 193 nC @ 10 V | 197 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 14000 pF @ 25 V | 6900 pF @ 25 V | 11100 pF @ 25 V | 11900 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 320W (Tc) | 230W (Tc) | 290W (Tc) | 290W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | ISOPLUS247™ | ISOPLUS247™ | ISOPLUS247™ | ISOPLUS247™ |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 |
