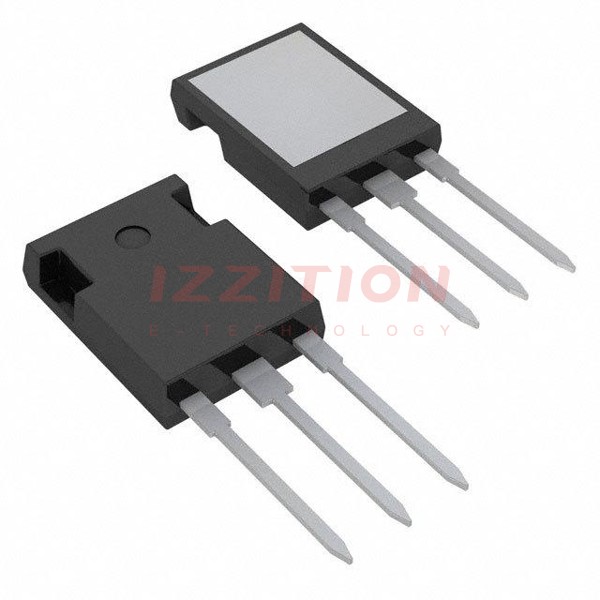

| Part Number | IXFR24N80P | IXFR44N80P | IXFT24N80P | IXFR24N90P | IXFR20N80P |
|---|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V | 800 V | 800 V | 900 V | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 13A (Tc) | 25A (Tc) | 24A (Tc) | 13A (Tc) | 11A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 420mOhm @ 12A, 10V | 200mOhm @ 22A, 10V | 400mOhm @ 12A, 10V | 460mOhm @ 12A, 10V | 500mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 4mA | 5V @ 8mA | 5V @ 4mA | 6.5V @ 1mA | 5V @ 4mA |
| Gate Charge (Qg) (Max) @ Vgs | 105 nC @ 10 V | 200 nC @ 10 V | 105 nC @ 10 V | 130 nC @ 10 V | 85 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 7200 pF @ 25 V | 12000 pF @ 25 V | 7200 pF @ 25 V | 7200 pF @ 25 V | 4680 pF @ 25 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 208W (Tc) | 300W (Tc) | 650W (Tc) | 230W (Tc) | 166W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole |
| Supplier Device Package | ISOPLUS247™ | ISOPLUS247™ | TO-268AA | ISOPLUS247™ | ISOPLUS247™ |
| Package / Case | TO-247-3 | TO-247-3 | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-247-3 | TO-247-3 |
