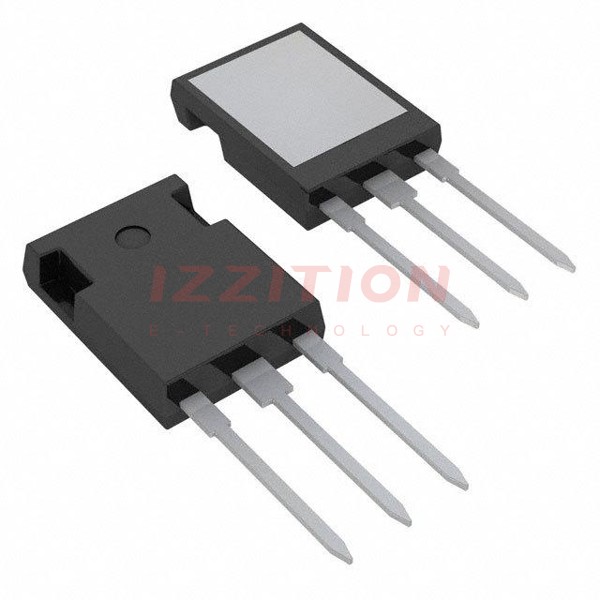

| Part Number | IXFR24N50Q | IXFR44N50Q | IXFR24N90Q | IXFR26N50Q | IXFT24N50Q | IXFQ24N50Q | IXFR24N50 |
|---|---|---|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Active | Active | Obsolete | Active | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V | 500 V | 900 V | 500 V | 500 V | 500 V | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 22A (Tc) | 34A (Tc) | - | 24A (Tc) | 24A (Tc) | 24A (Tc) | 24A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | - | 10V | 10V | - | 10V |
| Rds On (Max) @ Id, Vgs | 230mOhm @ 12A, 10V | 120mOhm @ 22A, 10V | - | 200mOhm @ 13A, 10V | 230mOhm @ 12A, 10V | - | 230mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 4mA | 4V @ 4mA | - | 4.5V @ 4mA | 4.5V @ 4mA | - | 4V @ 4mA |
| Gate Charge (Qg) (Max) @ Vgs | 95 nC @ 10 V | 190 nC @ 10 V | - | 95 nC @ 10 V | 95 nC @ 10 V | - | 160 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | - | ±20V | ±20V | - | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3900 pF @ 25 V | 7000 pF @ 25 V | - | 3900 pF @ 25 V | 3900 pF @ 25 V | - | 4200 pF @ 25 V |
| FET Feature | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 250W (Tc) | 310W (Tc) | - | 250W (Tc) | 300W (Tc) | - | 250W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole |
| Supplier Device Package | ISOPLUS247™ | ISOPLUS247™ | ISOPLUS247™ | ISOPLUS247™ | TO-268AA | TO-3P | ISOPLUS247™ |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-3P-3, SC-65-3 | TO-247-3 |
