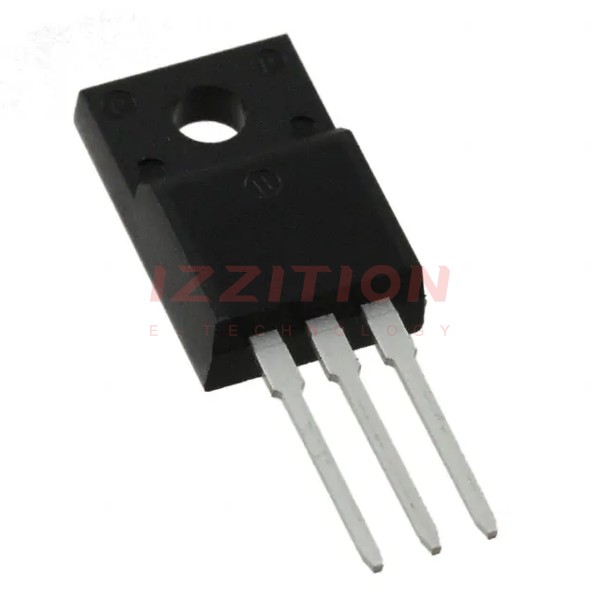

| Part Number | IXFP60N25X3M | IXFP30N25X3M | IXFP60N25X3 |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250 V | 250 V | 250 V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) | 30A (Tc) | 60A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 23mOhm @ 30A, 10V | 60mOhm @ 15A, 10V | 23mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 1.5mA | 4.5V @ 500µA | 4.5V @ 1.5mA |
| Gate Charge (Qg) (Max) @ Vgs | 50 nC @ 10 V | 21 nC @ 10 V | 50 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3610 pF @ 25 V | 1450 pF @ 25 V | 3610 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 36W (Tc) | 36W (Tc) | 320W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220AB (IXFP) | TO-220 Isolated Tab | TO-220AB (IXFP) |
| Package / Case | TO-220-3 | TO-220-3 Full Pack, Isolated Tab | TO-220-3 |
