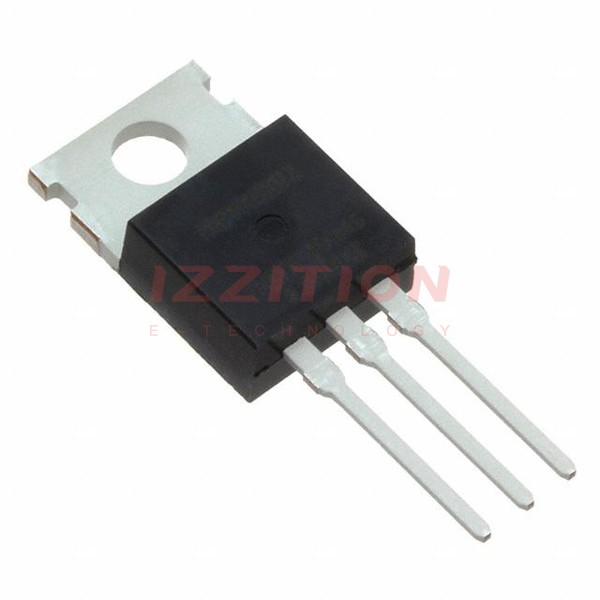

| Part Number | IXFP4N85X | IXFP4N85XM | IXFP8N85X | IXFP14N85X |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 850 V | 850 V | 850 V | 850 V |
| Current - Continuous Drain (Id) @ 25°C | 3.5A (Tc) | 3.5A (Tc) | 8A (Tc) | 14A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 2.5Ohm @ 2A, 10V | 2.5Ohm @ 2A, 10V | 850mOhm @ 4A, 10V | 550mOhm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 5.5V @ 250µA | 5.5V @ 250µA | 5.5V @ 250µA | 5.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 7 nC @ 10 V | 7 nC @ 10 V | 17 nC @ 10 V | 30 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 247 pF @ 25 V | 247 pF @ 25 V | 654 pF @ 25 V | 1043 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 150W (Tc) | 35W (Tc) | 200W (Tc) | 460W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220AB (IXFP) | TO-220 | TO-220AB (IXFP) | TO-220AB (IXFP) |
| Package / Case | TO-220-3 | TO-220-3 Full Pack | TO-220-3 | TO-220-3 |
