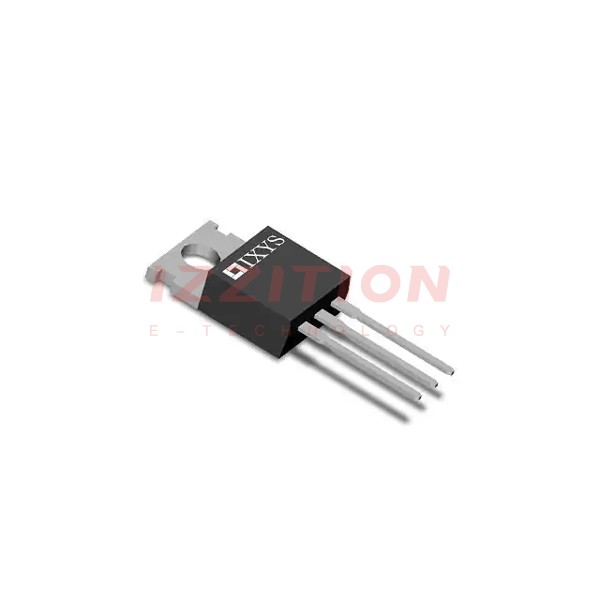

| Part Number | IXFP36N60X3 | IXFP36N20X3 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 36A (Tc) | 36A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 90mOhm @ 18A, 10V | 45mOhm @ 18A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 2.5mA | 4.5V @ 500µA |
| Gate Charge (Qg) (Max) @ Vgs | 29 nC @ 10 V | 21 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2030 pF @ 25 V | 1425 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 446W (Tc) | 176W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | TO-220 | TO-220-3 |
| Package / Case | TO-220-3 | TO-220-3 |
