Please send RFQ , we will respond immediately.

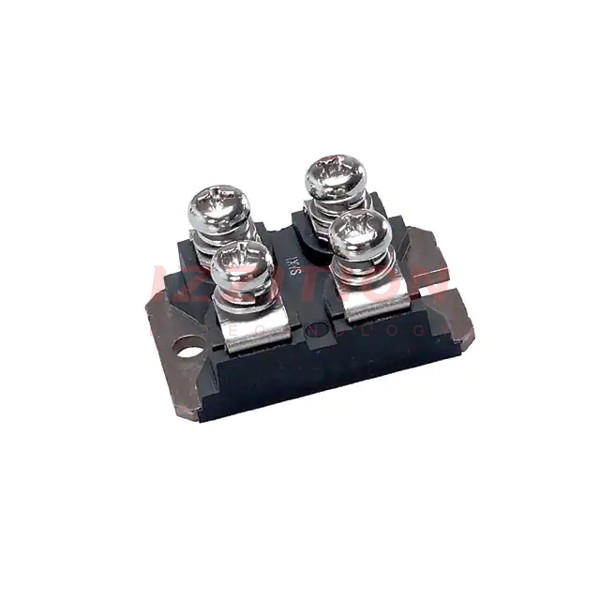

| Part Number | IXFN24N100 | IXFN34N100 | IXFN24N100F | IXFN23N100 |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Not For New Designs | Obsolete | Obsolete | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1000 V | 1000 V | 1000 V | 1000 V |
| Current - Continuous Drain (Id) @ 25°C | 24A (Tc) | 34A (Tc) | 24A (Tc) | 23A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 390mOhm @ 12A, 10V | 280mOhm @ 500mA, 10V | 390mOhm @ 12A, 10V | - |
| Vgs(th) (Max) @ Id | 5.5V @ 8mA | 5.5V @ 8mA | 5.5V @ 8mA | 5V @ 8mA |
| Gate Charge (Qg) (Max) @ Vgs | 267 nC @ 10 V | 380 nC @ 10 V | 195 nC @ 10 V | - |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 8700 pF @ 25 V | 9200 pF @ 25 V | 6600 pF @ 25 V | - |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 568W (Tc) | 700W (Tc) | 600W (Tc) | 600W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Supplier Device Package | SOT-227B | SOT-227B | SOT-227B | SOT-227B |
| Package / Case | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC |
