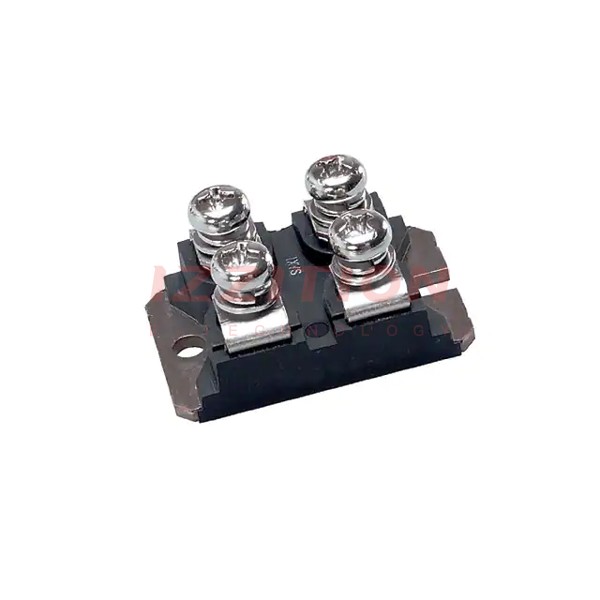

| Part Number | IXFN20N120P | IXFN26N120P | IXFN30N120P | IXFN20N120 |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) | 23A (Tc) | 30A (Tc) | 20A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 570mOhm @ 10A, 10V | 460mOhm @ 13A, 10V | 350mOhm @ 500mA, 10V | 750mOhm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 6.5V @ 1mA | 6.5V @ 1mA | 6.5V @ 1mA | 4.5V @ 8mA |
| Gate Charge (Qg) (Max) @ Vgs | 193 nC @ 10 V | 225 nC @ 10 V | 310 nC @ 10 V | 160 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 11100 pF @ 25 V | 14000 pF @ 25 V | 19000 pF @ 25 V | 7400 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 595W (Tc) | 695W (Tc) | 890W (Tc) | 780W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Supplier Device Package | SOT-227B | SOT-227B | SOT-227B | SOT-227B |
| Package / Case | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC |
