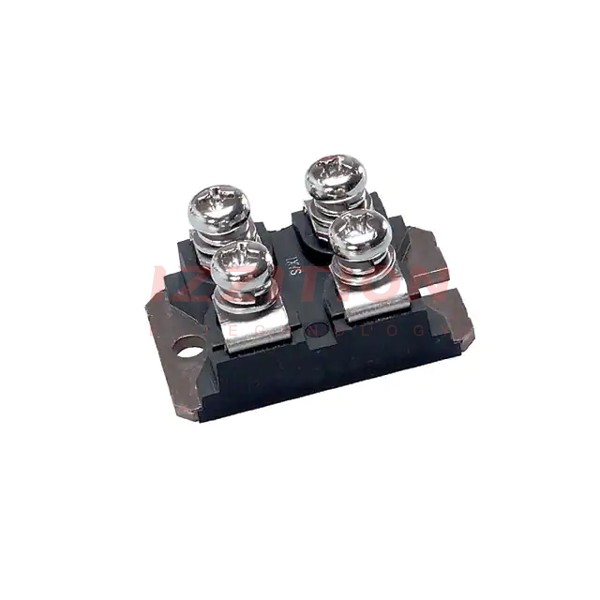

| Part Number | IXFN150N65X2 | IXFN170N65X2 | IXFN100N65X2 | IXFN120N65X2 |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 650 V | 650 V | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 145A (Tc) | 170A (Tc) | 78A (Tc) | 108A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 17mOhm @ 75A, 10V | 13mOhm @ 85A, 10V | 30mOhm @ 50A, 10V | 24mOhm @ 54A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 8mA | 5V @ 8mA | 5V @ 4mA | 5.5V @ 8mA |
| Gate Charge (Qg) (Max) @ Vgs | 355 nC @ 10 V | 434 nC @ 10 V | 183 nC @ 10 V | 225 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 21000 pF @ 25 V | 27000 pF @ 25 V | 10800 pF @ 25 V | 15500 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 1040W (Tc) | 1170W (Tc) | 595W (Tc) | 890W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Supplier Device Package | SOT-227B | SOT-227B | SOT-227B | SOT-227B |
| Package / Case | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC |
