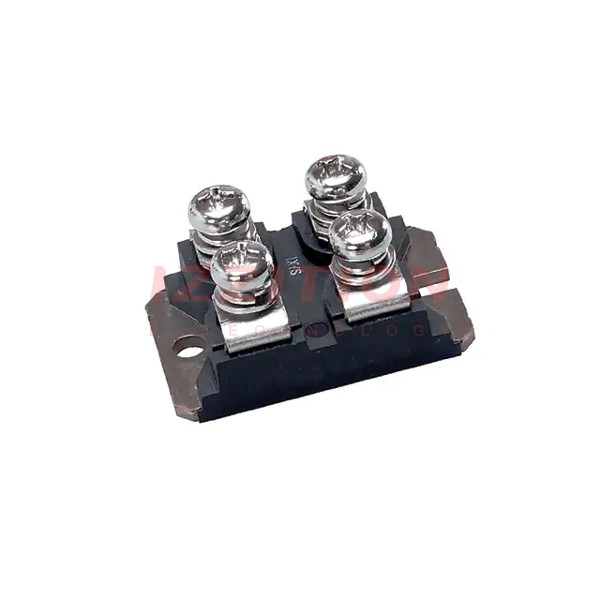

| Part Number | IXFN100N20 | IXFN120N20 | IXFN180N20 | IXFN106N20 | IXFN100N25 |
|---|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Not For New Designs | Not For New Designs | Not For New Designs | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V | 200 V | 200 V | 200 V | 250 V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) | 120A (Tc) | 180A (Tc) | 106A (Tc) | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 23mOhm @ 500mA, 10V | 17mOhm @ 500mA, 10V | 10mOhm @ 500mA, 10V | 20mOhm @ 500mA, 10V | 27mOhm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 4V @ 8mA | 4V @ 8mA | 4V @ 8mA | 4V @ 8mA | 4V @ 8mA |
| Gate Charge (Qg) (Max) @ Vgs | 380 nC @ 10 V | 360 nC @ 10 V | 660 nC @ 10 V | 380 nC @ 10 V | 300 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 9000 pF @ 25 V | 9100 pF @ 25 V | 22000 pF @ 25 V | 9000 pF @ 25 V | 9100 pF @ 25 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 520W (Tc) | 600W (Tc) | 700W (Tc) | 521W (Tc) | 600W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Supplier Device Package | SOT-227B | SOT-227B | SOT-227B | SOT-227B | SOT-227B |
| Package / Case | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC | SOT-227-4, miniBLOC |
