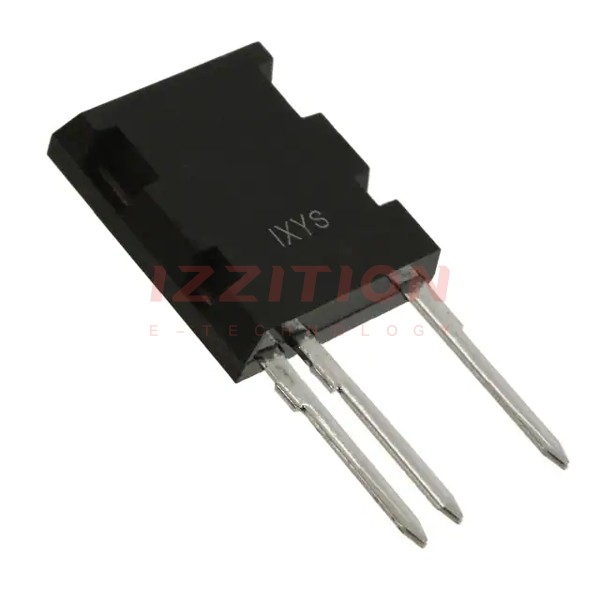

| Part Number | IXFL44N100P | IXFN44N100P |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1000 V | 1000 V |
| Current - Continuous Drain (Id) @ 25°C | 22A (Tc) | 37A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 240mOhm @ 22A, 10V | 220mOhm @ 22A, 10V |
| Vgs(th) (Max) @ Id | 6.5V @ 1mA | 6.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 305 nC @ 10 V | 305 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 19000 pF @ 25 V | 19000 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 357W (Tc) | 890W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Chassis Mount |
| Supplier Device Package | ISOPLUS264™ | SOT-227B |
| Package / Case | TO-264-3, TO-264AA | SOT-227-4, miniBLOC |
