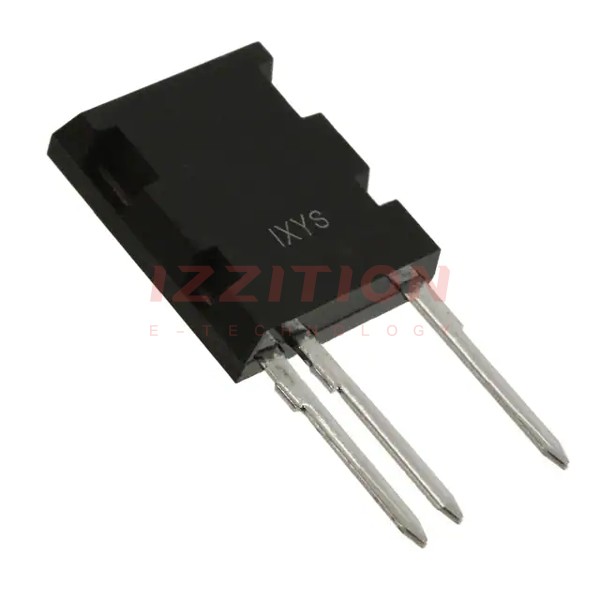

| Part Number | IXFL32N120P | IXFN32N120P | IXFL30N120P |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1200 V | 1200 V | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 24A (Tc) | 32A (Tc) | 18A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 340mOhm @ 16A, 10V | 310mOhm @ 500mA, 10V | 380mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 6.5V @ 1mA | 6.5V @ 1mA | 6.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 360 nC @ 10 V | 360 nC @ 10 V | 310 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 21000 pF @ 25 V | 21000 pF @ 25 V | 19000 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 520W (Tc) | 1000W (Tc) | 357W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Chassis Mount | Through Hole |
| Supplier Device Package | ISOPLUSi5-Pak™ | SOT-227B | ISOPLUSi5-Pak™ |
| Package / Case | ISOPLUSi5-Pak™ | SOT-227-4, miniBLOC | ISOPLUSi5-Pak™ |
