IXYS-IXFK240N25X3 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	250 V
Current - Continuous Drain (Id) @ 25°C:	240A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	5mOhm @ 120A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 8mA
Gate Charge (Qg) (Max) @ Vgs:	345 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	23800 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	1250W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-264
Package / Case:	TO-264-3, TO-264AA

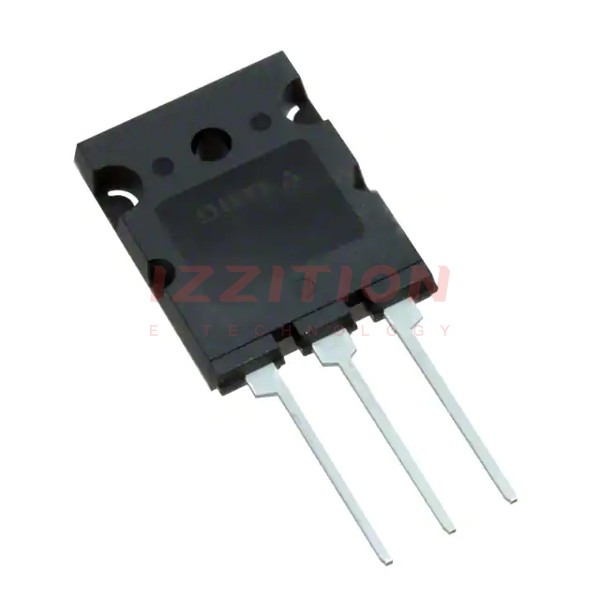

IXYS IXFK240N25X3
