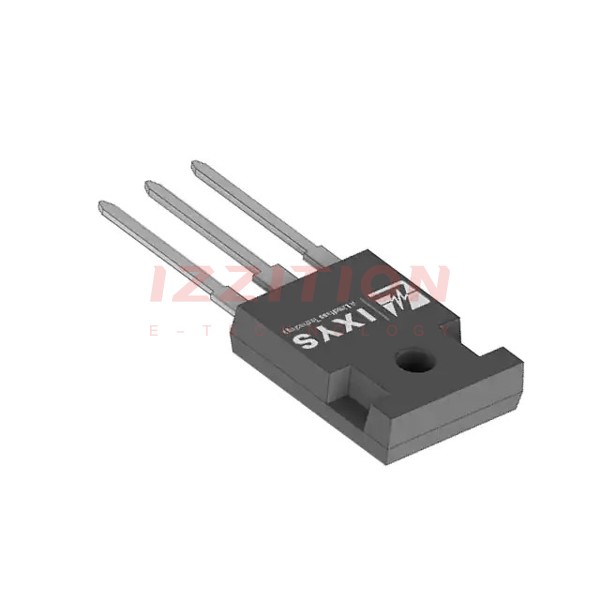

| Part Number | IXFH98N60X3 | IXFH48N60X3 | IXFH78N60X3 |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 98A (Tc) | 48A (Tc) | 78A |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 49A, 10V | 65mOhm @ 24A, 10V | 38mOhm @ 39A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 4mA | 5V @ 2.5mA | 5V @ 4mA |
| Gate Charge (Qg) (Max) @ Vgs | 90 nC @ 10 V | 38 nC @ 10 V | 70 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6250 pF @ 25 V | 2730 pF @ 25 V | 4700 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 960W (Tc) | 520W (Tc) | 780W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-247 (IXTH) | TO-247 | TO-247 |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 |
