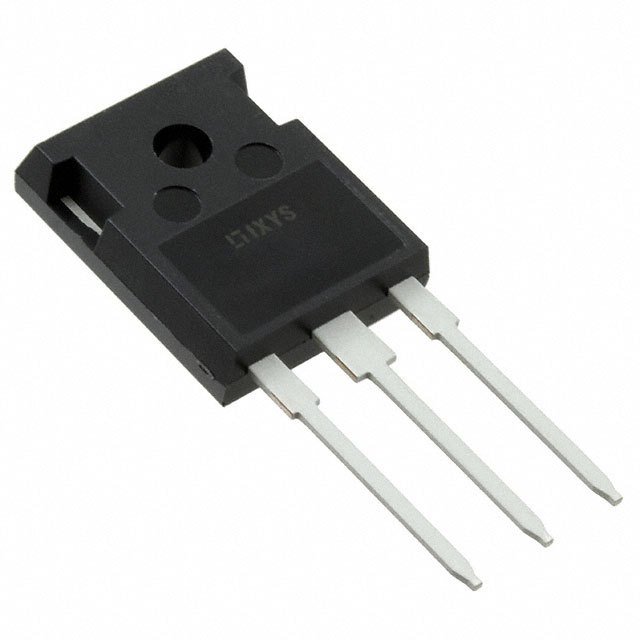

| Part Number | IXFH80N085 | IXFH80N08 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 85 V | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 80A (Tc) | 80A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 40A, 10V | 9mOhm @ 40A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 4mA | 4V @ 4mA |
| Gate Charge (Qg) (Max) @ Vgs | 180 nC @ 10 V | 180 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4800 pF @ 25 V | 4800 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 300W (Tc) | 300W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | TO-247AD (IXFH) | TO-247AD (IXFH) |
| Package / Case | TO-247-3 | TO-247-3 |
