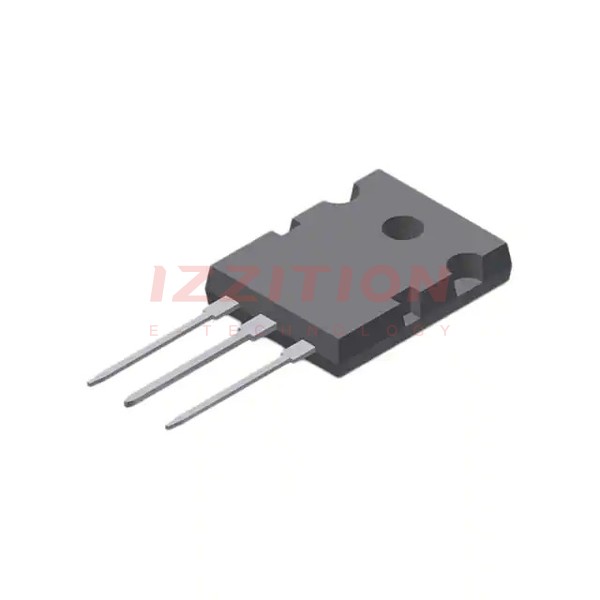

| Part Number | IXFH46N65X3 | IXFH46N65X2 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 46A (Tc) | 46A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 73mOhm @ 23A, 10V | 76mOhm @ 23A, 10V |
| Vgs(th) (Max) @ Id | 5.2V @ 2.5mA | 5.5V @ 4mA |
| Gate Charge (Qg) (Max) @ Vgs | 40 nC @ 10 V | 75 nC @ 10 V |
| Vgs (Max) | ±20V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2730 pF @ 25 V | 4810 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 520W (Tc) | 660W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | TO-247 (IXFH) | TO-247 (IXTH) |
| Package / Case | TO-247-3 | TO-247-3 |
