IXYS-IXFH34N50P3 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	500 V
Current - Continuous Drain (Id) @ 25°C:	34A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	170mOhm @ 17A, 10V
Vgs(th) (Max) @ Id:	5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs:	60 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	3260 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	695W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-247AD (IXFH)
Package / Case:	TO-247-3

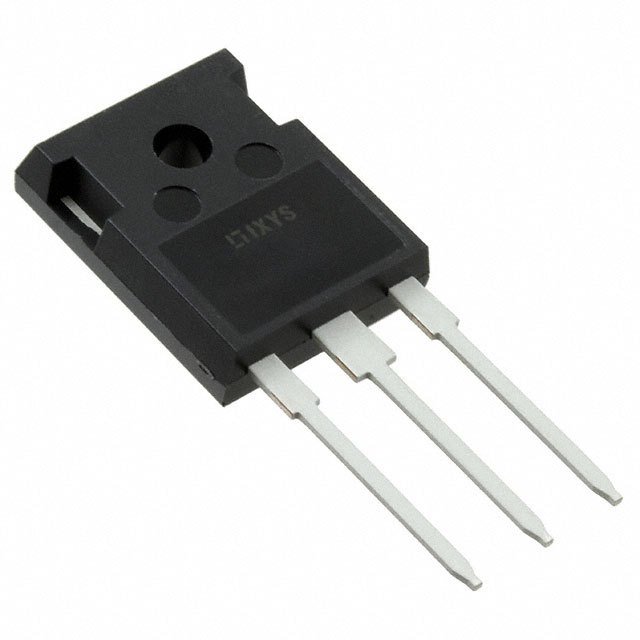

IXYS IXFH34N50P3
