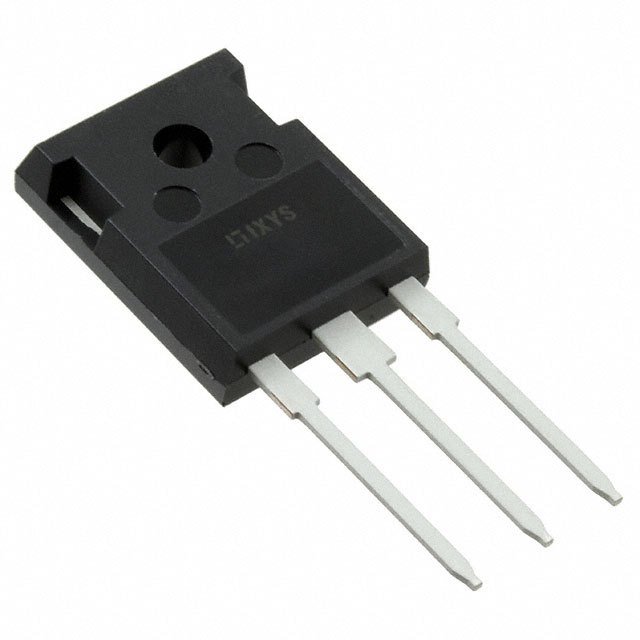

| Part Number | IXFH30N60X | IXFH50N60X | IXFH60N60X | IXFH30N60P | IXFH30N60Q |
|---|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) | 50A (Tc) | 60A (Tc) | 30A (Tc) | 30A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 155mOhm @ 15A, 10V | 73mOhm @ 25A, 10V | 55mOhm @ 30A, 10V | 240mOhm @ 15A, 10V | 230mOhm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 4mA | 4.5V @ 4mA | 4.5V @ 8mA | 5V @ 4mA | 4.5V @ 4mA |
| Gate Charge (Qg) (Max) @ Vgs | 56 nC @ 10 V | 116 nC @ 10 V | 143 nC @ 10 V | 82 nC @ 10 V | 125 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2270 pF @ 25 V | 4660 pF @ 25 V | 5800 pF @ 25 V | 4000 pF @ 25 V | 4700 pF @ 25 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 500W (Tc) | 660W (Tc) | 890W (Tc) | 500W (Tc) | 500W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-247 | TO-247 (IXTH) | TO-247 (IXTH) | TO-247AD (IXFH) | TO-247AD (IXFH) |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 |
