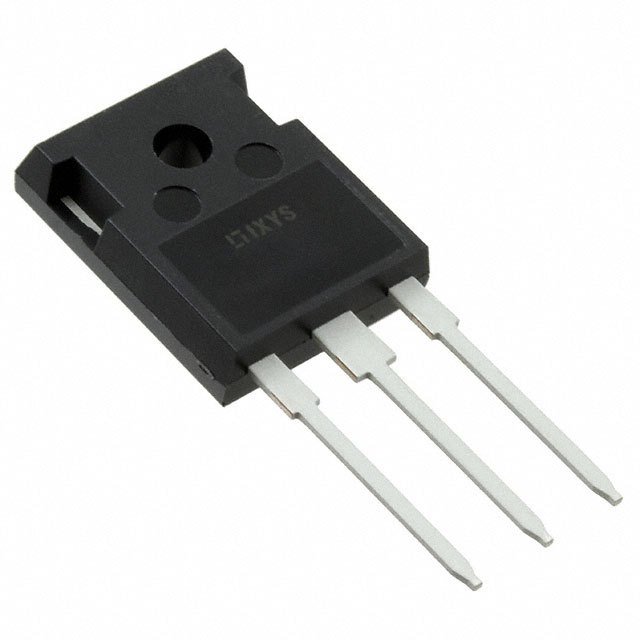

| Part Number | IXFH20N100P | IXFH10N100P |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1000 V | 1000 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) | 10A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 570mOhm @ 10A, 10V | 1.4Ohm @ 5A, 10V |
| Vgs(th) (Max) @ Id | 6.5V @ 1mA | 6.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 126 nC @ 10 V | 56 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 7300 pF @ 25 V | 3030 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 660W (Tc) | 380W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | TO-247AD (IXFH) | TO-247AD (IXFH) |
| Package / Case | TO-247-3 | TO-247-3 |
