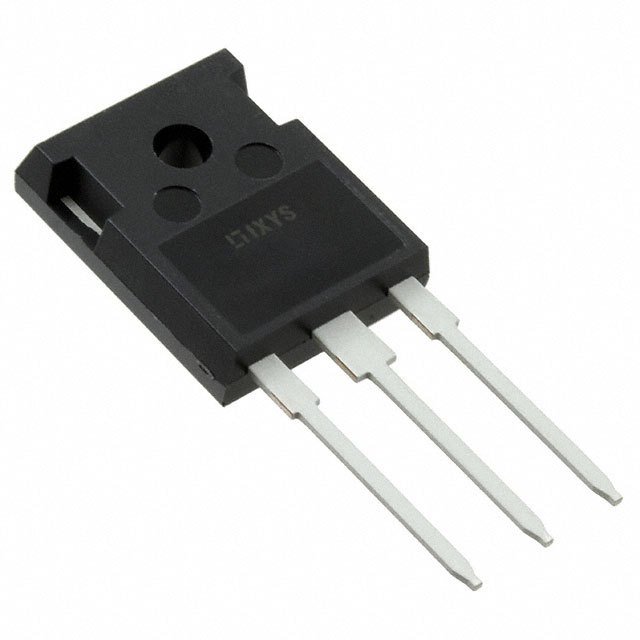

| Part Number | IXFH16N50P | IXFH16N80P | IXFH16N50P3 | IXFH36N50P | IXFH26N50P | IXFC16N50P |
|---|---|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V | 800 V | 500 V | 500 V | 500 V | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Tc) | 16A (Tc) | 16A (Tc) | 36A (Tc) | 26A (Tc) | 10A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 400mOhm @ 8A, 10V | 600mOhm @ 500mA, 10V | 360mOhm @ 8A, 10V | 170mOhm @ 500mA, 10V | 230mOhm @ 13A, 10V | 450mOhm @ 8A, 10V |
| Vgs(th) (Max) @ Id | 5.5V @ 2.5mA | 5V @ 4mA | 5V @ 2.5mA | 5V @ 4mA | 5.5V @ 4mA | 5.5V @ 2.5mA |
| Gate Charge (Qg) (Max) @ Vgs | 43 nC @ 10 V | 71 nC @ 10 V | 29 nC @ 10 V | 93 nC @ 10 V | 60 nC @ 10 V | 43 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2250 pF @ 25 V | 4600 pF @ 25 V | 1515 pF @ 25 V | 5500 pF @ 25 V | 3600 pF @ 25 V | 2250 pF @ 25 V |
| FET Feature | - | - | - | - | - | - |
| Power Dissipation (Max) | 300W (Tc) | 460W (Tc) | 330W (Tc) | 540W (Tc) | 400W (Tc) | 125W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-247AD (IXFH) | TO-247AD (IXFH) | TO-247AD (IXFH) | TO-247AD (IXFH) | TO-247AD (IXFH) | ISOPLUS220™ |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 | ISOPLUS220™ |
