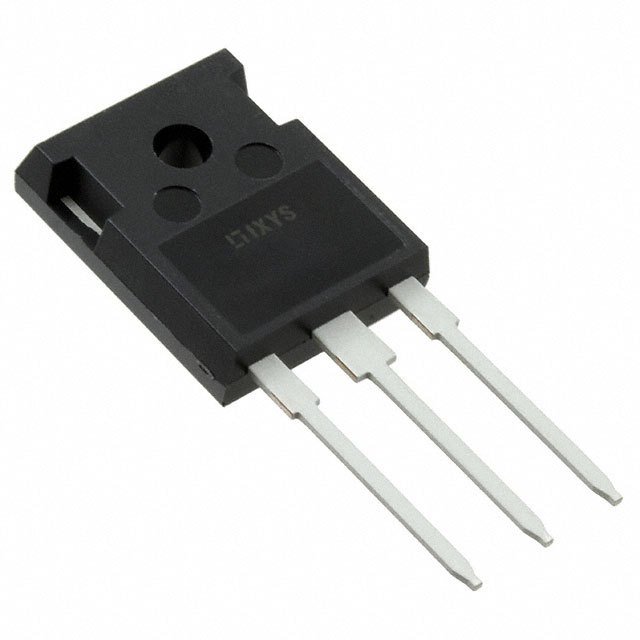

| Part Number | IXFH110N15T2 | IXFH160N15T2 |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 110A (Tc) | 160A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 500mA, 10V | 9mOhm @ 80A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA | 4.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 150 nC @ 10 V | 253 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 8600 pF @ 25 V | 15000 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 480W (Tc) | 880W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | TO-247AD (IXFH) | TO-247AD (IXFH) |
| Package / Case | TO-247-3 | TO-247-3 |
