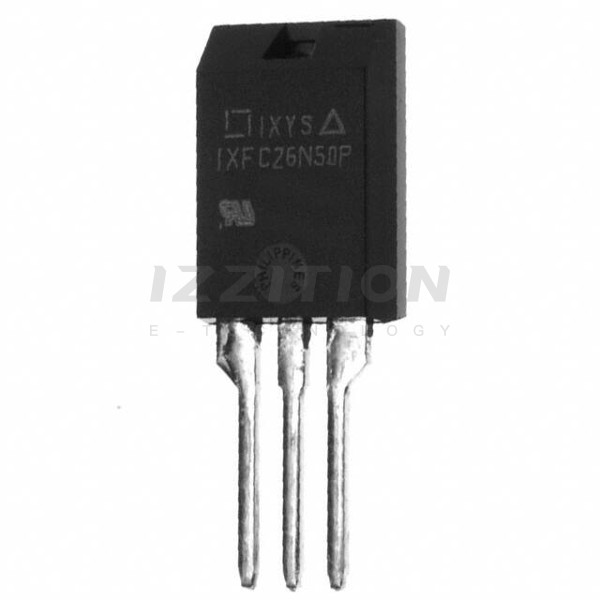

| Part Number | IXFC26N50P | IXFC36N50P | IXFC16N50P | IXFC26N50 |
|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V | 500 V | 500 V | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Tc) | 19A (Tc) | 10A (Tc) | 23A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 260mOhm @ 13A, 10V | 190mOhm @ 18A, 10V | 450mOhm @ 8A, 10V | 200mOhm @ 13A, 10V |
| Vgs(th) (Max) @ Id | 5.5V @ 4mA | 5V @ 4mA | 5.5V @ 2.5mA | 4V @ 4mA |
| Gate Charge (Qg) (Max) @ Vgs | 65 nC @ 10 V | 93 nC @ 10 V | 43 nC @ 10 V | 135 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3600 pF @ 25 V | 5500 pF @ 25 V | 2250 pF @ 25 V | 4200 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 130W (Tc) | 156W (Tc) | 125W (Tc) | 230W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | ISOPLUS220™ | ISOPLUS220™ | ISOPLUS220™ | ISOPLUS220™ |
| Package / Case | ISOPLUS220™ | ISOPLUS220™ | ISOPLUS220™ | ISOPLUS220™ |
