| Part Number | IXFC14N80P | IXFH14N80P | IXFC16N80P | IXFC10N80P | IXFC12N80P | IXFC14N60P |
|---|---|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V | 800 V | 800 V | 800 V | 800 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 8A (Tc) | 14A (Tc) | 9A (Tc) | 5A (Tc) | 7A (Tc) | 8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | - | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 770mOhm @ 7A, 10V | 720mOhm @ 500mA, 10V | 650mOhm @ 8A, 10V | - | 930mOhm @ 6A, 10V | 630mOhm @ 7A, 10V |
| Vgs(th) (Max) @ Id | 5.5V @ 4mA | 5.5V @ 4mA | 5V @ 4mA | - | 5.5V @ 2.5mA | 5.5V @ 2.5mA |
| Gate Charge (Qg) (Max) @ Vgs | 61 nC @ 10 V | 61 nC @ 10 V | 71 nC @ 10 V | - | 51 nC @ 10 V | 36 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | - | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 3900 pF @ 25 V | 3900 pF @ 25 V | 4600 pF @ 25 V | - | 2800 pF @ 25 V | 2500 pF @ 25 V |
| FET Feature | - | - | - | - | - | - |
| Power Dissipation (Max) | 130W (Tc) | 400W (Tc) | 150W (Tc) | - | 120W (Tc) | 125W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |

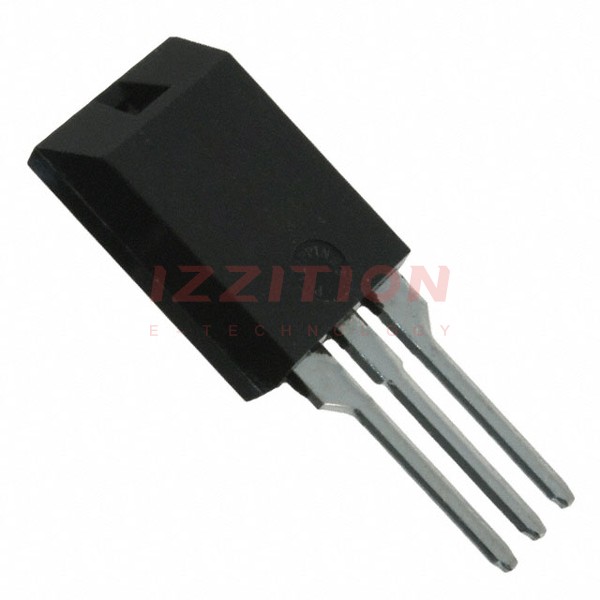

| Supplier Device Package | ISOPLUS220™ | TO-247AD (IXFH) | ISOPLUS220™ | ISOPLUS220™ | ISOPLUS220™ | ISOPLUS220™ |
| Package / Case | ISOPLUS220™ | TO-247-3 | ISOPLUS220™ | ISOPLUS220™ | ISOPLUS220™ | ISOPLUS220™ |
