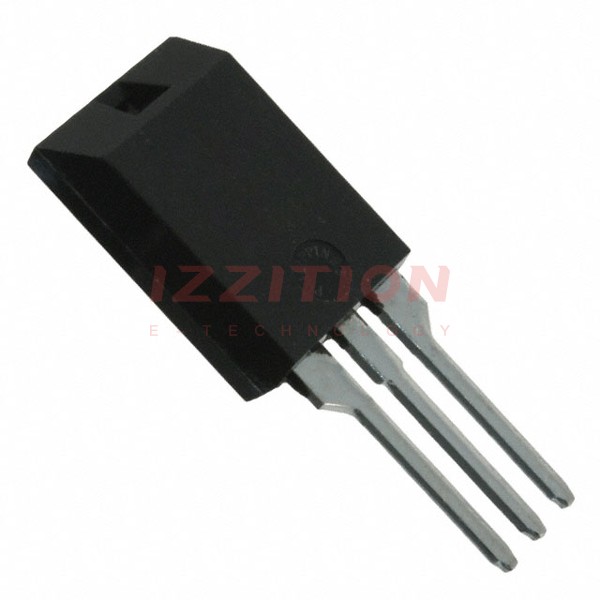

| Part Number | IXFC12N80P | IXFH12N80P | IXFC14N80P | IXFC16N80P | IXFC10N80P |
|---|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V | 800 V | 800 V | 800 V | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 7A (Tc) | 12A (Tc) | 8A (Tc) | 9A (Tc) | 5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | - |
| Rds On (Max) @ Id, Vgs | 930mOhm @ 6A, 10V | 850mOhm @ 500mA, 10V | 770mOhm @ 7A, 10V | 650mOhm @ 8A, 10V | - |
| Vgs(th) (Max) @ Id | 5.5V @ 2.5mA | 5.5V @ 2.5mA | 5.5V @ 4mA | 5V @ 4mA | - |
| Gate Charge (Qg) (Max) @ Vgs | 51 nC @ 10 V | 51 nC @ 10 V | 61 nC @ 10 V | 71 nC @ 10 V | - |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 2800 pF @ 25 V | 2800 pF @ 25 V | 3900 pF @ 25 V | 4600 pF @ 25 V | - |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 120W (Tc) | 360W (Tc) | 130W (Tc) | 150W (Tc) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | ISOPLUS220™ | TO-247AD (IXFH) | ISOPLUS220™ | ISOPLUS220™ | ISOPLUS220™ |
| Package / Case | ISOPLUS220™ | TO-247-3 | ISOPLUS220™ | ISOPLUS220™ | ISOPLUS220™ |
