Please send RFQ , we will respond immediately.

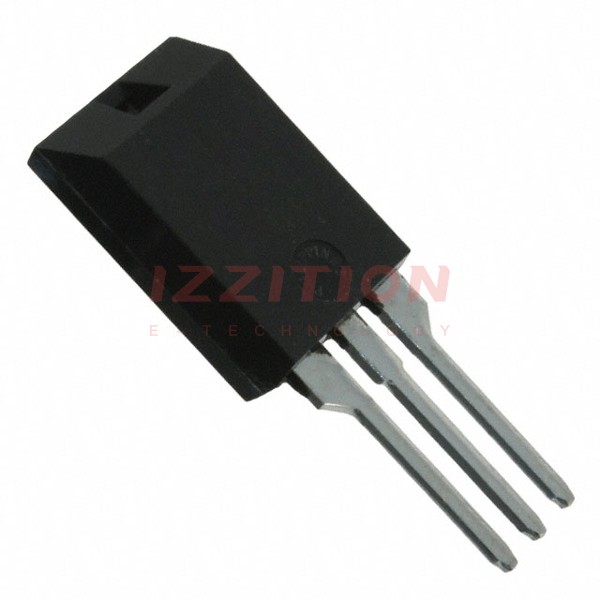

| Part Number | IXFC10N80P | IXFH10N80P | IXFC12N80P | IXFC14N80P | IXFC16N80P | IXFC20N80P |
|---|---|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V | 800 V | 800 V | 800 V | 800 V | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Tc) | 10A (Tc) | 7A (Tc) | 8A (Tc) | 9A (Tc) | 11A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | - | 1.1Ohm @ 5A, 10V | 930mOhm @ 6A, 10V | 770mOhm @ 7A, 10V | 650mOhm @ 8A, 10V | 500mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | - | 5.5V @ 2.5mA | 5.5V @ 2.5mA | 5.5V @ 4mA | 5V @ 4mA | 5V @ 4mA |
| Gate Charge (Qg) (Max) @ Vgs | - | 40 nC @ 10 V | 51 nC @ 10 V | 61 nC @ 10 V | 71 nC @ 10 V | 85 nC @ 10 V |
| Vgs (Max) | - | ±30V | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | - | 2050 pF @ 25 V | 2800 pF @ 25 V | 3900 pF @ 25 V | 4600 pF @ 25 V | 4680 pF @ 25 V |
| FET Feature | - | - | - | - | - | - |
| Power Dissipation (Max) | - | 300W (Tc) | 120W (Tc) | 130W (Tc) | 150W (Tc) | 166W (Tc) |
| Operating Temperature | - | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | ISOPLUS220™ | TO-247AD (IXFH) | ISOPLUS220™ | ISOPLUS220™ | ISOPLUS220™ | ISOPLUS220™ |
| Package / Case | ISOPLUS220™ | TO-247-3 | ISOPLUS220™ | ISOPLUS220™ | ISOPLUS220™ | ISOPLUS220™ |
