IXYS-IXFA4N85X - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	850 V
Current - Continuous Drain (Id) @ 25°C:	3.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	2.5Ohm @ 2A, 10V
Vgs(th) (Max) @ Id:	5.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	7 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	247 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	150W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TO-263 (IXFA)
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

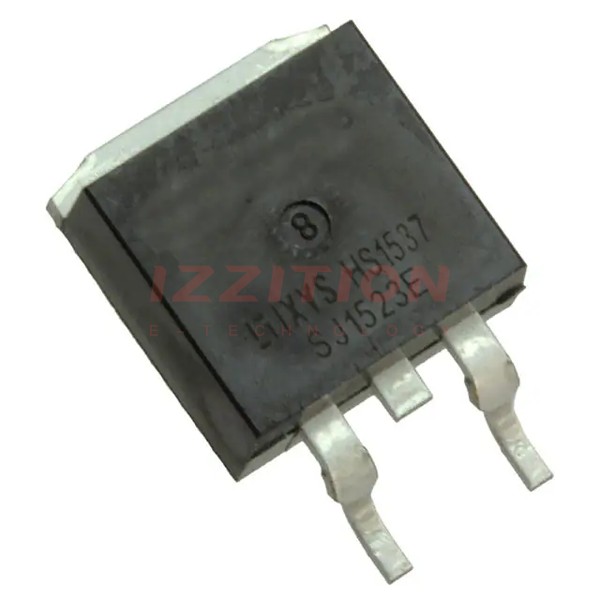

IXYS IXFA4N85X
