Please send RFQ , we will respond immediately.

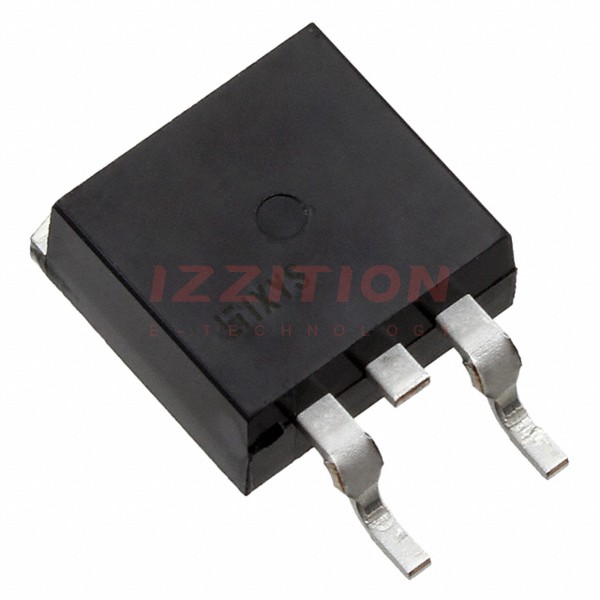

| Part Number | IXFA30N25X3 | IXFA80N25X3 | IXFA60N25X3 |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250 V | 250 V | 250 V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) | 80A (Tc) | 60A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 60mOhm @ 15A, 10V | 16mOhm @ 40A, 10V | 23mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 500µA | 4.5V @ 1.5mA | 4.5V @ 1.5mA |
| Gate Charge (Qg) (Max) @ Vgs | 21 nC @ 10 V | 83 nC @ 10 V | 50 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1450 pF @ 25 V | 5430 pF @ 25 V | 3610 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 176W (Tc) | 390W (Tc) | 320W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | TO-263AA (IXFA) | TO-263 (D2Pak) | TO-263 (D2Pak) |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
