IXYS-IXEL40N400 - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	4000 V
Current - Collector (Ic) (Max):	90 A
Current - Collector Pulsed (Icm):	400 A
Vce(on) (Max) @ Vge, Ic:	3.2V @ 15V, 40A
Power - Max:	380 W
Switching Energy:	55mJ (on), 165mJ (off)
Input Type:	Standard
Gate Charge:	275 nC
Td (on/off) @ 25°C:	160ns/630ns
Test Condition:	2800V, 40A, 33Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	ISOPLUSi5-Pak™
Supplier Device Package:	ISOPLUSi5-Pak™

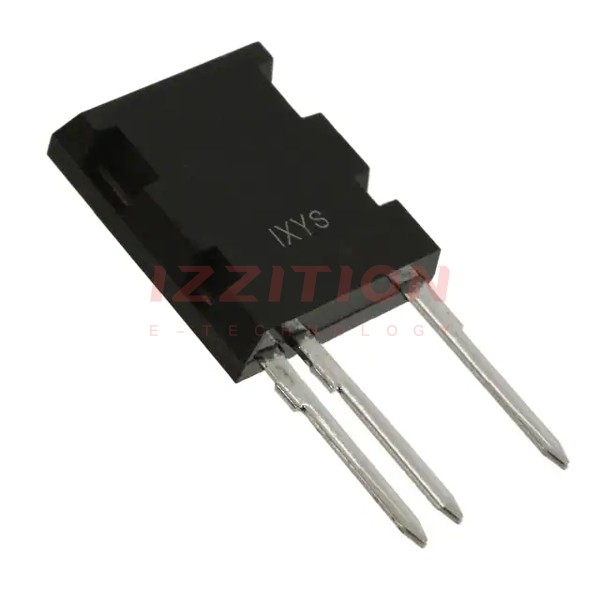

IXYS IXEL40N400
