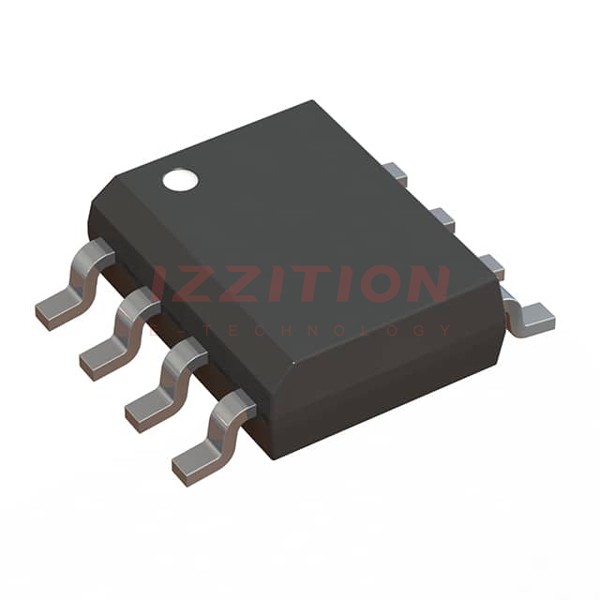

| Part Number | IXDN609SIA | IXDI609SIA | IXDN409SIA | IXDN509SIA | IXDN602SIA | IXDN604SIA | IXDN609SI |
|---|---|---|---|---|---|---|---|
| Manufacturer | IXYS Integrated Circuits Division | IXYS Integrated Circuits Division | IXYS | IXYS | IXYS Integrated Circuits Division | IXYS Integrated Circuits Division | IXYS Integrated Circuits Division |
| Product Status | Active | Active | Obsolete | Obsolete | Active | Active | Active |
| Driven Configuration | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side |
| Channel Type | Single | Single | Single | Single | Independent | Independent | Single |
| Number of Drivers | 1 | 1 | 1 | 1 | 2 | 2 | 1 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 35V | 4.5V ~ 35V | 4.5V ~ 35V | 4.5V ~ 30V | 4.5V ~ 35V | 4.5V ~ 35V | 4.5V ~ 35V |
| Logic Voltage - VIL, VIH | 0.8V, 3V | 0.8V, 3V | 0.8V, 3.5V | 0.8V, 2.4V | 0.8V, 3V | 0.8V, 3V | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 9A, 9A | 9A, 9A | 9A, 9A | 9A, 9A | 2A, 2A | 4A, 4A | 9A, 9A |
| Input Type | Non-Inverting | Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - | - | - | - |
| Rise / Fall Time (Typ) | 22ns, 15ns | 22ns, 15ns | 10ns, 10ns | 25ns, 23ns | 7.5ns, 6.5ns | 9ns, 8ns | 22ns, 15ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -40°C ~ 125°C (TA) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC-EP |
