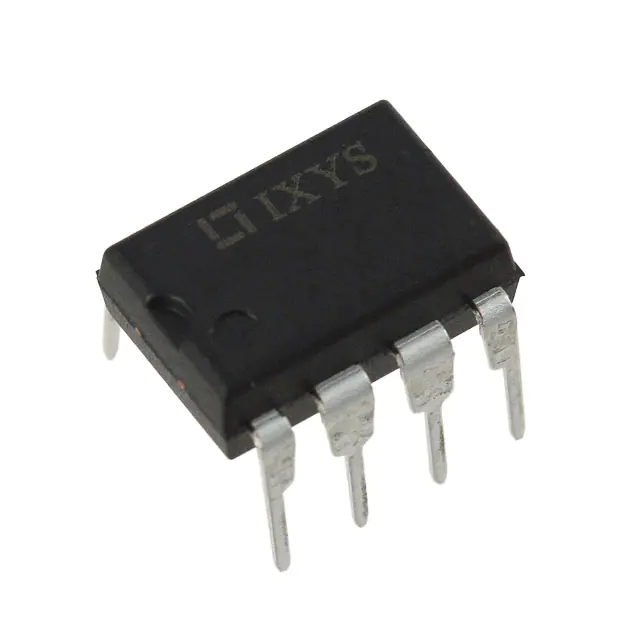

| Part Number | IXDN604PI | IXDN614PI | IXDN609PI | IXDN604SI | IXDF604PI | IXDI604PI | IXDN404PI | IXDN504PI | IXDN602PI |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | IXYS Integrated Circuits Division | IXYS Integrated Circuits Division | IXYS Integrated Circuits Division | IXYS Integrated Circuits Division | IXYS Integrated Circuits Division | IXYS Integrated Circuits Division | IXYS | IXYS | IXYS Integrated Circuits Division |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Obsolete | Active |
| Driven Configuration | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side |
| Channel Type | Independent | Single | Single | Independent | Independent | Independent | Independent | Independent | Independent |
| Number of Drivers | 2 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 35V | 4.5V ~ 35V | 4.5V ~ 35V | 4.5V ~ 35V | 4.5V ~ 35V | 4.5V ~ 35V | 4.5V ~ 35V | 4.5V ~ 30V | 4.5V ~ 35V |
| Logic Voltage - VIL, VIH | 0.8V, 3V | 0.8V, 3V | 0.8V, 3V | 0.8V, 3V | 0.8V, 3V | 0.8V, 3V | 0.8V, 2.5V | 0.8V, 3V | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 4A, 4A | 14A, 14A | 9A, 9A | 4A, 4A | 4A, 4A | 4A, 4A | 4A, 4A | 4A, 4A | 2A, 2A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Inverting, Non-Inverting | Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - | - | - | - | - | - |
| Rise / Fall Time (Typ) | 9ns, 8ns | 25ns, 18ns | 22ns, 15ns | 9ns, 8ns | 9ns, 8ns | 9ns, 8ns | 16ns, 13ns | 9ns, 8ns | 7.5ns, 6.5ns |
| Operating Temperature | -40°C ~ 125°C (TA) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm), 6 Leads | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP | 8-DIP | 8-DIP | 8-SOIC-EP | 8-DIP | 8-DIP | 8-DIP | 8-DIP | 8-DIP |
