Please send RFQ , we will respond immediately.

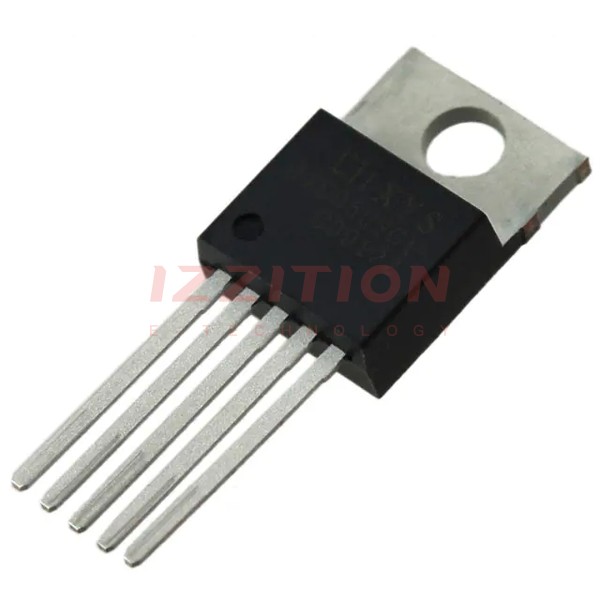

| Part Number | IXDI609CI | IXDI609SI | IXDI609PI | IXDI609YI | IXDN609CI | IXDD609CI |
|---|---|---|---|---|---|---|
| Manufacturer | IXYS Integrated Circuits Division | IXYS Integrated Circuits Division | IXYS Integrated Circuits Division | IXYS Integrated Circuits Division | IXYS Integrated Circuits Division | IXYS Integrated Circuits Division |
| Product Status | Active | Active | Active | Active | Active | Active |
| Driven Configuration | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side |
| Channel Type | Single | Single | Single | Single | Single | Single |
| Number of Drivers | 1 | 1 | 1 | 1 | 1 | 1 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 35V | 4.5V ~ 35V | 4.5V ~ 35V | 4.5V ~ 35V | 4.5V ~ 35V | 4.5V ~ 35V |
| Logic Voltage - VIL, VIH | 0.8V, 3V | 0.8V, 3V | 0.8V, 3V | 0.8V, 3V | 0.8V, 3V | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 9A, 9A | 9A, 9A | 9A, 9A | 9A, 9A | 9A, 9A | 9A, 9A |
| Input Type | Inverting | Inverting | Inverting | Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - | - | - |
| Rise / Fall Time (Typ) | 22ns, 15ns | 22ns, 15ns | 22ns, 15ns | 22ns, 15ns | 22ns, 15ns | 22ns, 15ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Surface Mount | Through Hole | Through Hole |
| Package / Case | TO-220-5 | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-DIP (0.300", 7.62mm) | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-220-5 | TO-220-5 |
| Supplier Device Package | TO-220-5 | 8-SOIC-EP | 8-DIP | TO-263-5 | TO-220-5 | TO-220-5 |
