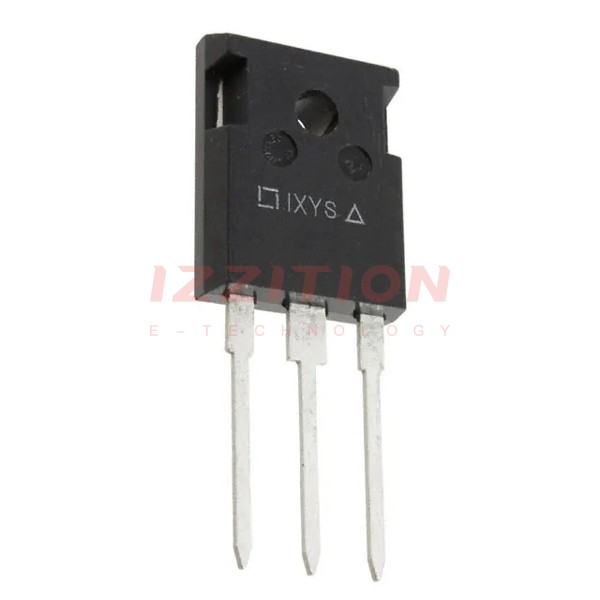

| Part Number | IXDH30N120D1 | IXDR30N120D1 | IXDH20N120D1 |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| IGBT Type | NPT | NPT | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 60 A | 50 A | 38 A |
| Current - Collector Pulsed (Icm) | 76 A | 60 A | 50 A |
| Vce(on) (Max) @ Vge, Ic | 2.9V @ 15V, 30A | 2.9V @ 15V, 30A | 3V @ 15V, 20A |
| Power - Max | 300 W | 200 W | 200 W |
| Switching Energy | 4.6mJ (on), 3.4mJ (off) | 4.6mJ (on), 3.4mJ (off) | 3.1mJ (on), 2.4mJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 120 nC | 120 nC | 70 nC |
| Td (on/off) @ 25°C | - | - | - |
| Test Condition | 600V, 30A, 47Ohm, 15V | 600V, 30A, 47Ohm, 15V | 600V, 20A, 82Ohm, 15V |
| Reverse Recovery Time (trr) | 40 ns | 40 ns | 40 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247AD | ISOPLUS247™ | TO-247AD |
