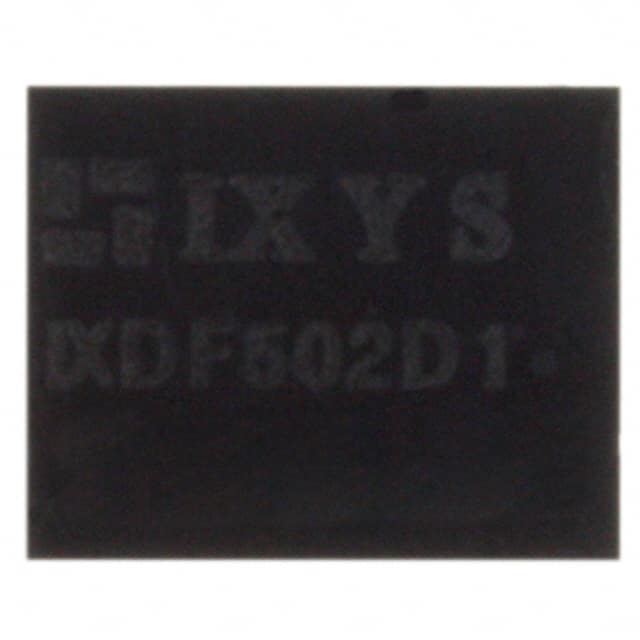

| Part Number | IXDF502D1T/R | IXDI502D1T/R | IXDN502D1T/R |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Obsolete | Obsolete |
| Driven Configuration | Low-Side | Low-Side | Low-Side |
| Channel Type | Independent | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 30V | 4.5V ~ 30V | 4.5V ~ 30V |
| Logic Voltage - VIL, VIH | 0.8V, 3V | 0.8V, 3V | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 2A, 2A | 2A, 2A | 2A, 2A |
| Input Type | Inverting, Non-Inverting | Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - |
| Rise / Fall Time (Typ) | 7.5ns, 6.5ns | 7.5ns, 6.5ns | 7.5ns, 6.5ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad | 6-VDFN Exposed Pad | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-DFN (4x5) | 6-DFN (4x5) | 6-DFN (4x5) |
