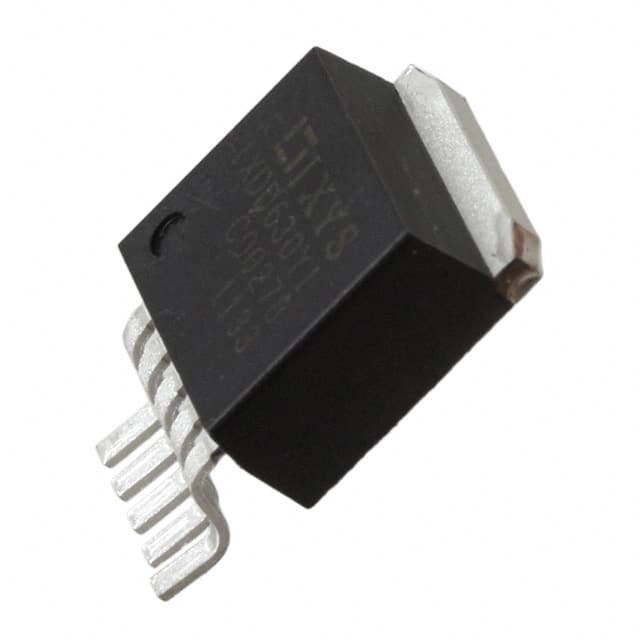

| Part Number | IXDD630YI | IXDI630YI | IXDD430YI | IXDD630CI | IXDD630MYI |
|---|---|---|---|---|---|
| Manufacturer | IXYS Integrated Circuits Division | IXYS Integrated Circuits Division | IXYS | IXYS Integrated Circuits Division | IXYS Integrated Circuits Division |
| Product Status | Active | Active | Obsolete | Active | Active |
| Driven Configuration | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side |
| Channel Type | Single | Single | Single | Single | Single |
| Number of Drivers | 1 | 1 | 1 | 1 | 1 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 12.5V ~ 35V | 12.5V ~ 35V | 8.5V ~ 35V | 12.5V ~ 35V | 9V ~ 35V |
| Logic Voltage - VIL, VIH | 0.8V, 3.5V | 0.8V, 3.5V | 0.8V, 3.5V | 0.8V, 3.5V | 0.8V, 3.5V |
| Current - Peak Output (Source, Sink) | 30A, 30A | 30A, 30A | 30A, 30A | 30A, 30A | 30A, 30A |
| Input Type | Non-Inverting | Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - | - |
| Rise / Fall Time (Typ) | 11ns, 11ns | 11ns, 11ns | 18ns, 16ns | 11ns, 11ns | 11ns, 11ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | TO-220-5 | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263-5 | TO-263-5 | TO-263-5 | TO-220-5 | TO-263-5 |
