IXYS-IXDD509D1 - PMIC - Gate Drivers Product Specifications and Latest Quotes

Driven Configuration:	Low-Side
Channel Type:	Single
Number of Drivers:	1
Gate Type:	IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply:	4.5V ~ 30V
Logic Voltage - VIL, VIH:	0.8V, 2.4V
Current - Peak Output (Source, Sink):	9A, 9A
Input Type:	Non-Inverting
High Side Voltage - Max (Bootstrap):	-
Rise / Fall Time (Typ):	25ns, 23ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-VDFN Exposed Pad
Supplier Device Package:	6-DFN (4x5)

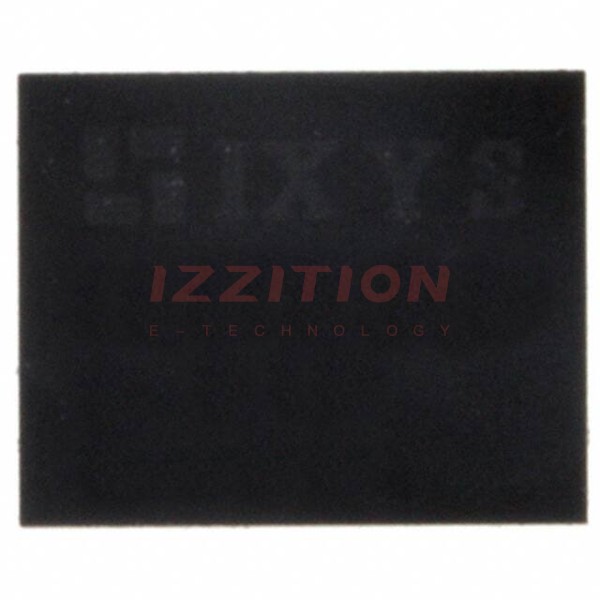

IXYS IXDD509D1
