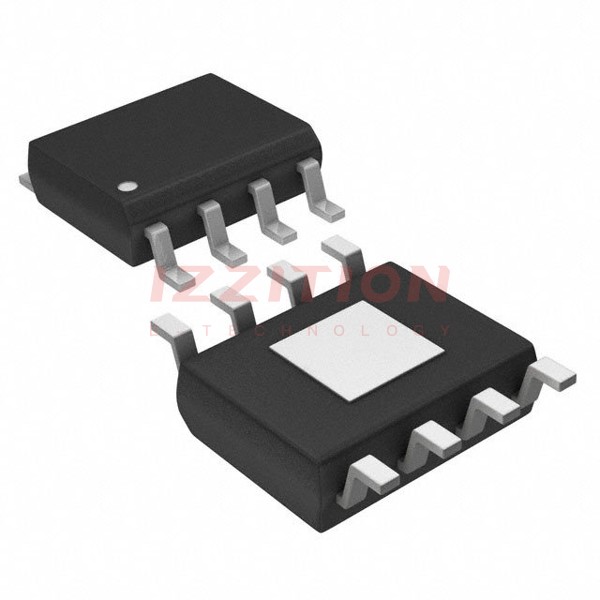

| Part Number | IXDD504SIAT/R | IXDD509SIAT/R | IXDD514SIAT/R | IXDE504SIAT/R | IXDF504SIAT/R | IXDI504SIAT/R |
|---|---|---|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS | IXYS | IXYS | IXYS |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Driven Configuration | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side |
| Channel Type | Independent | Single | Single | Independent | Independent | Independent |
| Number of Drivers | 2 | 1 | 1 | 2 | 2 | 2 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 30V | 4.5V ~ 30V | 4.5V ~ 30V | 4.5V ~ 30V | 4.5V ~ 30V | 4.5V ~ 30V |
| Logic Voltage - VIL, VIH | 0.8V, 3V | 0.8V, 2.4V | 1V, 2.5V | 0.8V, 3V | 0.8V, 3V | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 4A, 4A | 9A, 9A | 14A, 14A | 4A, 4A | 4A, 4A | 4A, 4A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Inverting | Inverting, Non-Inverting | Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - | - | - |
| Rise / Fall Time (Typ) | 9ns, 8ns | 25ns, 23ns | 25ns, 22ns | 9ns, 8ns | 9ns, 8ns | 9ns, 8ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC-EP | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC |
