IXYS-IXBX50N360HV - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	3600 V
Current - Collector (Ic) (Max):	125 A
Current - Collector Pulsed (Icm):	420 A
Vce(on) (Max) @ Vge, Ic:	2.9V @ 15V, 50A
Power - Max:	660 W
Switching Energy:	-
Input Type:	Standard
Gate Charge:	210 nC
Td (on/off) @ 25°C:	46ns/205ns
Test Condition:	960V, 50A, 5Ohm, 15V
Reverse Recovery Time (trr):	1.7 µs
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3 Variant
Supplier Device Package:	TO-247PLUS-HV

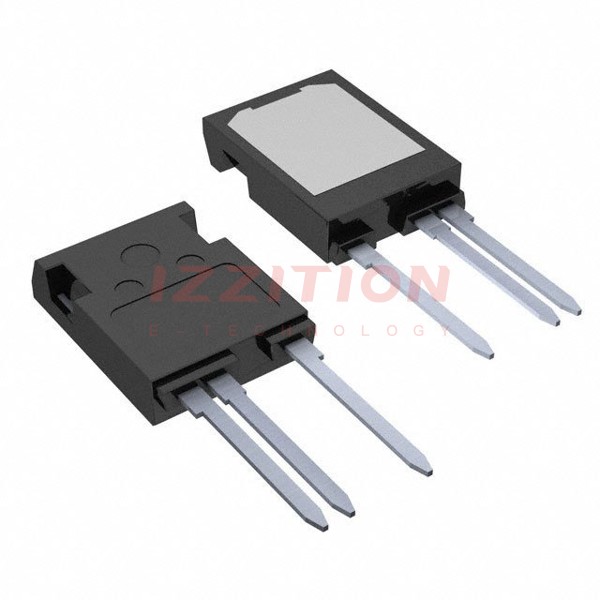

IXYS IXBX50N360HV
