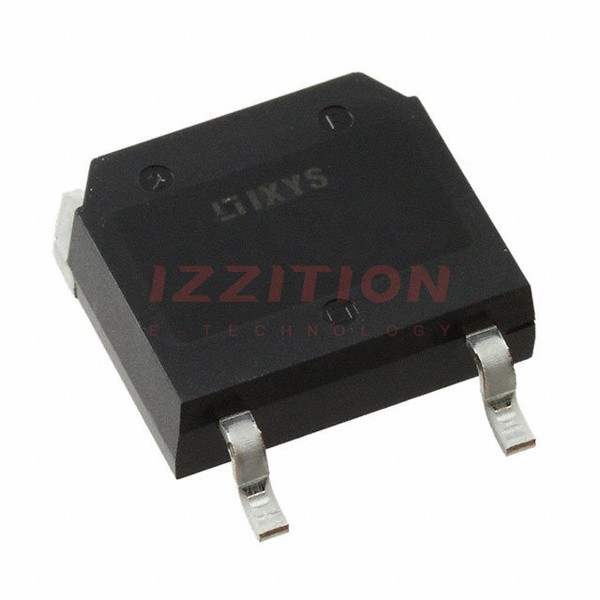

| Part Number | IXBT32N300HV | IXBT42N300HV | IXBT12N300HV |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| IGBT Type | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 3000 V | 3000 V | 3000 V |
| Current - Collector (Ic) (Max) | 80 A | 104 A | 30 A |
| Current - Collector Pulsed (Icm) | 280 A | 400 A | 100 A |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 32A | 3V @ 15V, 42A | 3.2V @ 15V, 12A |
| Power - Max | 400 W | 500 W | 160 W |
| Switching Energy | - | - | - |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 142 nC | 200 nC | 62 nC |
| Td (on/off) @ 25°C | 50ns/160ns | 72ns/445ns | 64ns/180ns |
| Test Condition | 1250V, 32A, 2Ohm, 15V | 1500V, 42A, 20Ohm, 15V | 1250V, 12A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 1500 ns | 1.7 µs | 1.4 µs |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Supplier Device Package | TO-268HV | TO-268HV | TO-268 |
