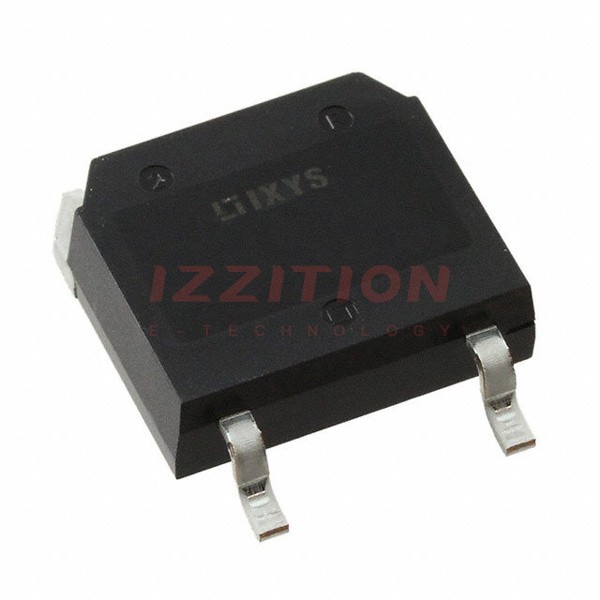

| Part Number | IXBT16N170AHV | IXBA16N170AHV |
|---|---|---|
| Manufacturer | IXYS | IXYS |
| Product Status | Active | Active |
| IGBT Type | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V | 1700 V |
| Current - Collector (Ic) (Max) | 16 A | 16 A |
| Current - Collector Pulsed (Icm) | 40 A | 40 A |
| Vce(on) (Max) @ Vge, Ic | 6V @ 15V, 10A | 6V @ 15V, 10A |
| Power - Max | 150 W | 150 W |
| Switching Energy | 2.5mJ (off) | 2.5mJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 65 nC | 65 nC |
| Td (on/off) @ 25°C | 15ns/250ns | 15ns/250ns |
| Test Condition | 1360V, 10A, 10Ohm, 15V | 1360V, 10A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 25 ns | 25 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-268HV | TO-263HV |
