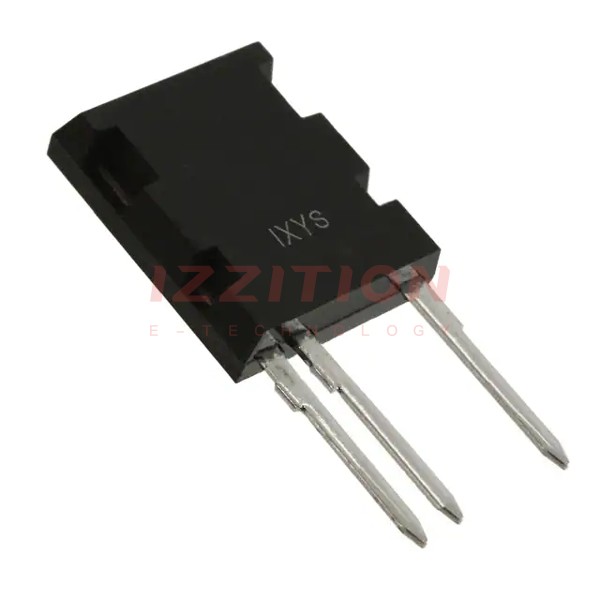

| Part Number | IXBL64N250 | IXBX64N250 | IXBK64N250 |
|---|---|---|---|
| Manufacturer | IXYS | IXYS | IXYS |
| Product Status | Active | Active | Active |
| IGBT Type | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 2500 V | 2500 V | 2500 V |
| Current - Collector (Ic) (Max) | 116 A | 156 A | 75 A |
| Current - Collector Pulsed (Icm) | 750 A | 600 A | - |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 64A | 3V @ 15V, 64A | 3V @ 15V, 64A |
| Power - Max | 500 W | 735 W | 735 W |
| Switching Energy | - | - | - |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 400 nC | 400 nC | - |
| Td (on/off) @ 25°C | - | 49ns/232ns | - |
| Test Condition | - | 1250V, 128A, 1Ohm, 15V | - |
| Reverse Recovery Time (trr) | 160 ns | 160 ns | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | ISOPLUSi5-Pak™ | TO-247-3 Variant | TO-264-3, TO-264AA |
| Supplier Device Package | ISOPLUSi5-Pak™ | PLUS247™-3 | TO-264AA |
